Power Inspection Agricultural Drones Industry With 1080P HD Camera

NEW LANDLE TECHNOLOGY CO.,LTD
Contact Now

Power Inspection Agricultural Drones Industry With 1080P HD Camera

  • 1
  • 2

Brand Name : NLD

Model Number : NPA610

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Box

Motor wheelbase : 1200mm

Working time : 30~50min

Max takeoff weight : 25kg

Payload : 0~5kg

HD Camera : 1080P

Image transmission distance : 10~15km

Contact Now

Industrial Grade Drone With 1080P HD Camera For Power Inspection

Introduction

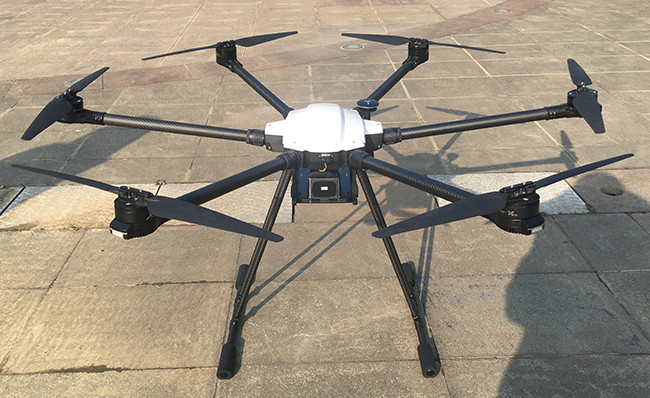

NPA-610 for power line, Flight control 3 redundant accelerometers and gyroscopes, it can work for full construction section, long time flying suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.
Motor wheelbase 1200mm Working time 30~50min
Max takeoff weight 25kg Payload 0~5kg
HD Camera 1080P Image transmission distance 10~15km
Horizontal speed 0~15m/s Wind resistance 6

Power Inspection Agricultural Drones Industry With 1080P HD Camera

Suspension components

NGC-C4K: 4K HD optical zoom gimbal

Lightweight Gimbal weight 286g

High resolution, zoom

12 million pixels, up to 4K recording

14 times zoom (3.5 times optical * 4 times digital)

High stability Jitter Angle: ±0.01°

One-key to center

Double-click the target, center zoom function

GPS information record

Superimpose GPS information display and save to subtitle file

Available SDK

Sky data interface and ground station SDK is available

Object Tracking

General Parameter
Product NGC-C4K: 4K HD optical zoom gimbal
Working voltage 12V-25V
Power 6W
Weight 275g
Size 96*79*120mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet
Environment parameter
Working environment temp. -10℃ ~ 60℃
Storage environment temp. -20℃ ~70℃
Gimbal parameter
Jitter Angle ±0.01°
Installation method Detachable
Controllable rotation range Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300°
Structure design scope Roll Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50°
Maximum control speed Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s
Camera parameter
Sensor CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062
Lens

3.5x optical zoom lens F 3.85~13.4mm

Minimum shooting distance: 1mm~3mm (near focus ~ far focus)

Field of view (horizontal): 82~25°

Image storage format JPEG
Video storage format MP4
Working method Video, photo
Fog penetration Electronic fog penetration
Exposure mode Automatic exposure and manual exposure
Resolution

25fps(3840*2160)

25fps(1920*1080)

Maximum capture resolution: (4024*3036)

Minimum illumination Color: 0.5Lux/F2.4
2D noise reduction
3D noise reduction
Shutter speed 1/3- 1/30000s
Exposure Automatic support
OSD
Pointing zoom
Pointing zoom range 1~3.5 times optical
One-click zoom to single image
Support memory card type Micro SD card 128G (maximum)
